C.Scope – 80 Metre Flexible Tracer
About this product
The Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains. When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages or obstructions within the pipe. If a depth measuring Locator is being used then it is also possible to know the depth of the pipe/blockage. The Flexible Tracer is lightweight and compact making it very easy to transport. It comprises a 6mm diameter, 80m long continuous fibreglass rod housed in a strong reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the Connection Terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. Uniquely, this Sonde is also flexible allowing the Flexible Tracer to negotiate bends in a pipe that would ordinarily stop a conventional Sonde from getting past.
Specialists in underground location, C.Scope International LTD is a UK manufacturer who still design and produce all of the products in Great Britain.
C.Scope – 80 Metre Flexible Tracer
About this product
The Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains. When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages or obstructions within the pipe. If a depth measuring Locator is being used then it is also possible to know the depth of the pipe/blockage. The Flexible Tracer is lightweight and compact making it very easy to transport. It comprises a 6mm diameter, 80m long continuous fibreglass rod housed in a strong reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the Connection Terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. Uniquely, this Sonde is also flexible allowing the Flexible Tracer to negotiate bends in a pipe that would ordinarily stop a conventional Sonde from getting past.
Specialists in underground location, C.Scope International LTD is a UK manufacturer who still design and produce all of the products in Great Britain.
About this product
The Flexible Tracer is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers and drains. When used with any C.Scope Cable Locator and Signal Generator, both the route of a non-metallic pipe and a particular end point can be pinpointed with the Flexible Tracer. This is particularly useful for identifying the position of any blockages or obstructions within the pipe. If a depth measuring Locator is being used then it is also possible to know the depth of the pipe/blockage. The Flexible Tracer is lightweight and compact making it very easy to transport. It comprises a 6mm diameter, 80m long continuous fibreglass rod housed in a strong reel that rotates on an axle. The axle has a slip-ring allowing the Signal Generator to remain connected to the Connection Terminals of the Flexible Tracer whilst it is being inserted into the pipe to be traced. A tiny Sonde is built into the tip of the Flexible Tracer allowing the end point of the Tracer to also be located. Uniquely, this Sonde is also flexible allowing the Flexible Tracer to negotiate bends in a pipe that would ordinarily stop a conventional Sonde from getting past.
Specialists in underground location, C.Scope International LTD is a UK manufacturer who still design and produce all of the products in Great Britain.

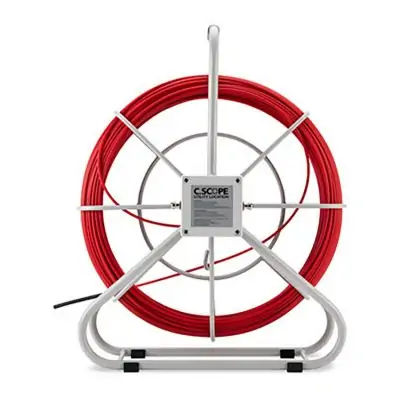

C.Scope – 80 Metre Flexible Tracer Features
- Fibreglass rod inside a drum cage mounted in a tubular steel frame.
- 80m of 5mm diameter flexible fibreglass rod with fully integrated 7.5mm diameter Sonde.
- Integral Sonde for tip tracing.
- Integral wire for line tracing.
- Slip Ring allowing drum rotation when in use.
- Rotation brake.
- Unique flexible Sonde performs even in tight angles.
- Robust but lightweight construction.
C.Scope Flexible Tracer – Datasheet
119.94 KB
